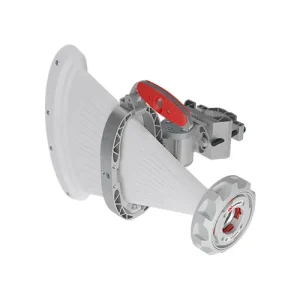

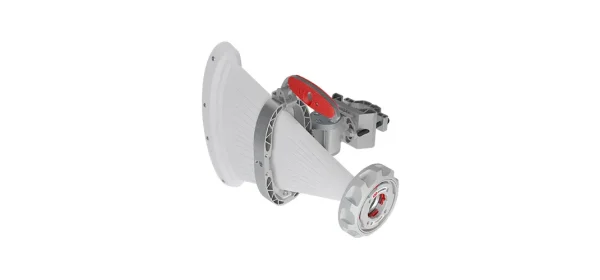

RF Elements 60° Asymmetrical Horn Antenna | AH60WB

RF Elements 60° Asymmetrical Horn Antenna AH60WB is a wideband sector antenna covering 4900–7125MHz with 16dBi gain and dual-linear H/V polarisation. Its asymmetrical pattern provides a 60° azimuth and 25° elevation beamwidth at -6dB, with 96% beam efficiency and 27dB front-to-back ratio. It uses a TwistPort waveguide connector, supports ±20° azimuth/elevation adjustment, mounts to 40–80mm poles and is rated IP65 with 160km/h wind survival.
