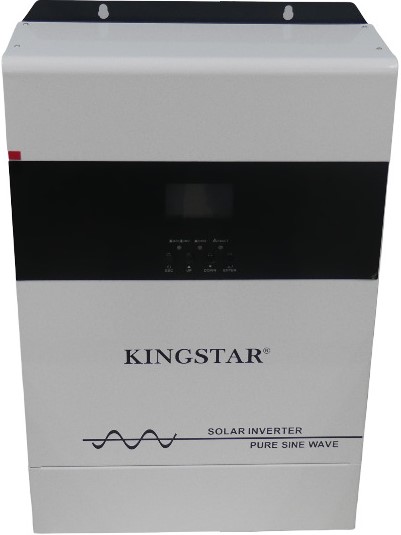

Solarix Kingstar 4KVA Off Grid Pure Sine Wave Inverter

Solarix KingStar 4KVA 24VDC 60A Pure Sine Wave OffGrid Inverter- 60A PWM Solar Charge Controller , 4000w Rated Power, Max Watt Output 4KW Peak Efficiency 93%, Retail Box , 6 Months Warranty

Product Overview

The Solarix KingStar 4KVA Off Grid Pure Sine Wave Inverter is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable acceptable and .easy-accessible button operation such as battery charging current.AC/solar charger priority, and acceptable input voltage based on different applications.

Features

•4KVA 24VDC 60A Pure Sine Wave OffGrid Inverter
•4000w Rated Power
•Max Watt Output 4kW Peak Efficiency 93%
•60A PWM Solar Charge Controller
•Voltage: 230V AC and Battery Voltage: 24VDC
•Nominal PV Voltage 105VDC
•AC Charging Current Maximum 60A
•Configurable AC Solar Charger Priority Via LCD Setting
•Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
•Configurable Battery Charging Current Based On Applications Via LCD Setting
•Configurable AC Solar Charger Priority Via LCD Setting
•Compatible To Mains Voltage Or Generator Power
•Auto Restart While AC Is Recovering
•Overload/Over Temperature/Short Circuit Protection
•Smart Battery Charger Design For Optimized Battery Performance
•Cold Start Function

Specifications

•Stock Code: KSW4000VA4000W
•Description: Solarix Kingstar 4KVA Off Grid Inverter
Inverter Mode
•Rated Power: 4000VA
•DC Input: 24VDC, 156.3A
•AC Output: 230VAC,50/60Hz,13A
•Type of Battery: Lithium/Gel/Lead Acid
AC Charger Mode:
•AC Input: 230VAC,50/60Hz,16.3A
•DC Output: 27VDC, 50A
•AC Output: 230VAC,50/60Hz, 13A
Solar Charger Mode
•Max. Charge Current: 60A
•Rated Power: 1600W
•Min. Solar Voltage: 30VDC
•Max. Solar Voltage: 105VDC
Environment
•Temperature: -10℃ to 50℃
•Protective Class: I
•Degree of Protection: IP21
•N.W: 19.06 kg
•G.W: 20.32 kg
•Packing Size: 565*383*188mm
