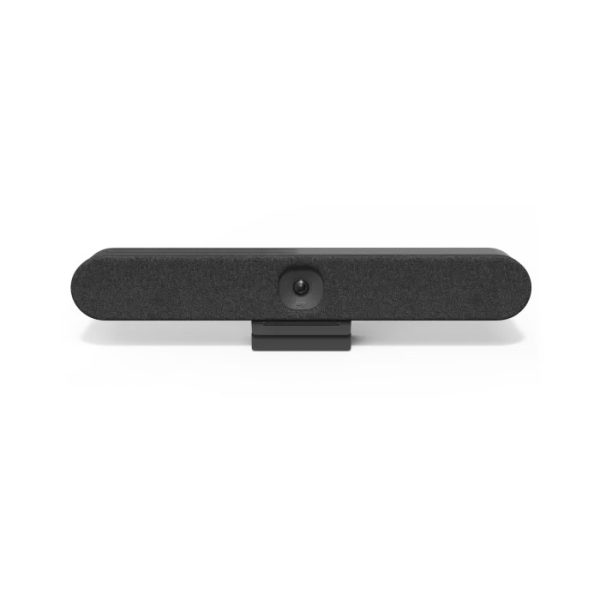

Logitech Rally Bar Huddle for Small and Huddle Rooms

Part Number960-001501DimensionsWidth: 549.6 mmHeight: 78.9 mmDepth: 76.0 mmWeight: 1.8 kgTechnical SpecificationsCertifications and CompatibilityFor the latest information on certification and compatibility, see www.logitech.com/support/vc-certifications.General SpecificationsBuilt-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platformEnclosure: All-in-one enclosure with field replaceable front coverDevice Management: Logitech SyncDisplays Supported: 1 (2nd display support is coming soon)Display Resolution: 1080pNetwork Protocol Support: IPv4, IPv6Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC fileCameraDigital Pan: ±48° at 4x zoomDigital Tilt: ±32° at 4x zoomZoom: 4X HD digital zoomDiagonal Field of View: 120°Horizontal Field of View: 113°Vertical Field of View: 80°Resolution: 4KSpeakersDriver: 55 mm with bass reflex enclosure and patented suspension designSensitivity: 83 dB SPL @1W +/-2dB @ 1 meterRated Power: 8WTHD at 1W, 1kHz: <2%Speaker Sampling Rate: 48KHzImpedance: 4 OhmsMicrophonesFrequency Response: 90Hz – 16kHzSensitivity: -36dBFS +/-1 dB @ 1PaMicrophone data rate output: 48 kHzPickup Range: Up to 7mBeamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beamsAudio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)Noise suppression: AI based de-noising algorithmInterfacesHDMI Out: 1HDMI In: 1USB: 1x Type A USB 3.1, 1x Type C USB 3.1Network: 10/100/1G EthernetWiFi: 802.11a/b/g/n/acBluetooth: Bluetooth® Low EnergyPower and CablesPower supply: Auto-sensingOperating Voltage/Power: 100-240V, 19V, 2.1APower Supply Dimensions: 114 mm x 47 mm x 32.3 mmDC Cable: 1.5 mAC Cable: 1 mHDMI 1.4 Cable: 2 mUSB A to USB C 3.0 Cable: 2.2 mEnvironmentalOperating Temperature: 0 to 40°CStorage Temperature: -25 to 70°CHumidity: 10 to 90%SecurityFile Based Encryption: AES-128Data Encryption: Symmetric Keys, PKIDevice Identity: Protected by device attestationDevice Access: Authenticated using APIKey Protection: Arm TrustZone, RPMPAccessoriesCovers: Rally Bar Huddle Front Cover-Cleanable, Off-White FabricMounts: Wall Mount for Video Bars, TV Mount for Video BarsTouch Controller: Logitech Tap and Tap IPWarranty InformationStandard: 2-year limited hardware warranty included.Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.Contact your reseller for availability.
