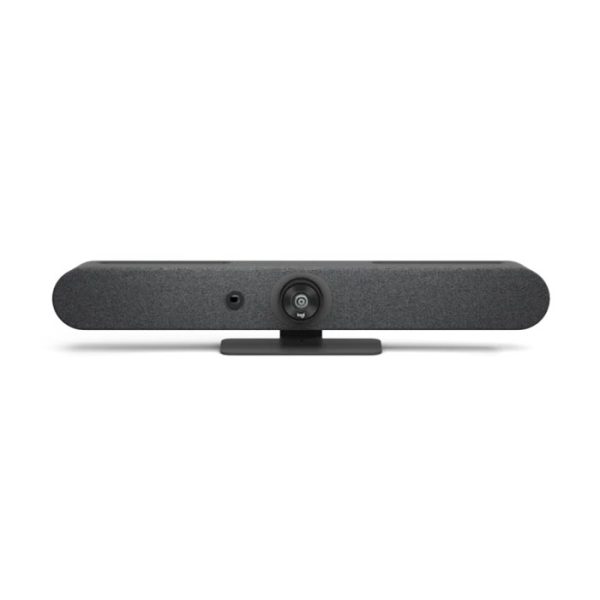

Logitech Rally Bar Mini All-in-one Video Bar for Small to Medium Rooms – Graphite

Part NumberGraphite :960-001341White :960-001353DimensionsHeight: 91.4 mmWidth: 719 mmDepth: 101 mmLens Depth: 18.5 mmWeight: 4.03 kgsTechnical SpecificationsCertifications & CompatibilityFor the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certificationsMicrosoft Teams Rooms on Android1For small sized roomsMicrosoft Teams Rooms on Windows2For small sized roomsGeneral SpecificationsBuilt-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platformEnclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interferenceDevice Management: Logitech SyncDisplays Supported: 2Display Resolution: Up to 1080pNetwork Protocol Support: IPv4, IPv6Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC fileCameraResolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fpsPan: Motorized ±25°Tilt: Motorized ±15°Zoom: 4X HD digital zoomDiagonal Field of View: 120°Horizontal Field of View: 113°Vertical Field of View: 80.7°Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° verticalWoofer SpeakerDriver: 70 mmSensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meterRated Power: 8WTHD: 1kHz < 2% at 1WSpeaker Sampling Rate: 48KHzImpedance: 4 OhmsMidrange SpeakersDrivers: 2 x 43mmSensitivity: 84 dB SPL @ 1W/1MRated Power: 4WTHD: 1kHz < 2% at 1WSpeaker Sampling Rate: 48KHzImpedance: 4 OhmsMicrophonesFrequency Response: 90Hz – 16kHzSensitivity: >-36dBFS +/-1 dB @ 1PaMicrophone data rate output: 48 kHzPickup Range: Up to 7 mBeamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beamsAudio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)Noise suppression: AI based de-noising algorithmAdd-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference roomsRightSense™ TechnologiesRightLight: Renders natural skin tones for each participantRightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the roomRightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echoGrid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridviewInterfacesHDMI Out: 2 (up to 1080p)HDMI In: 1USB: 3x Type A, 1x Type CNetwork: 10/100/1G EthernetWiFi: 802.11a/b/g/n/acExternal Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)Remote Control: Bluetooth® Low EnergyPower & CablesPower supply: Auto-sensingOperating Voltage/Power: 100-240V, 19V, 4.74APower Supply Dimensions: 127 mm x 51 mm x 30 mmDC Cable: 1.5 mAC Cable: 1 mHDMI 1.4 Cable: 2 mUSB A to USB C 3.0 Cable: 2.2 mEnvironmentalOperating Temperature: 0 to 40°CStorage Temperature: -40 to 70°CHumidity: 10 to 95%BTU/hr: 57 idle, 64 in meetingSecurityFull Disk Encryption: AES-128Data Encryption: Symmetric Keys, PKIDevice Identity: Protected by device attestationDevice Access: Authenticated using APIKey Protection: Arm TrustZone, RPMPAccessoriesMounts: Wall Mount for Video Bars, TV Mount for Video BarsAudio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension CableConnectivity: Logitech Strong USB (10m, 25m, 45m)Touch Controller: Logitech Tap and Tap IP3Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest informationWarranty InformationStandard: 2-year limited hardware warranty included.Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase. Contact your reseller for availability.
